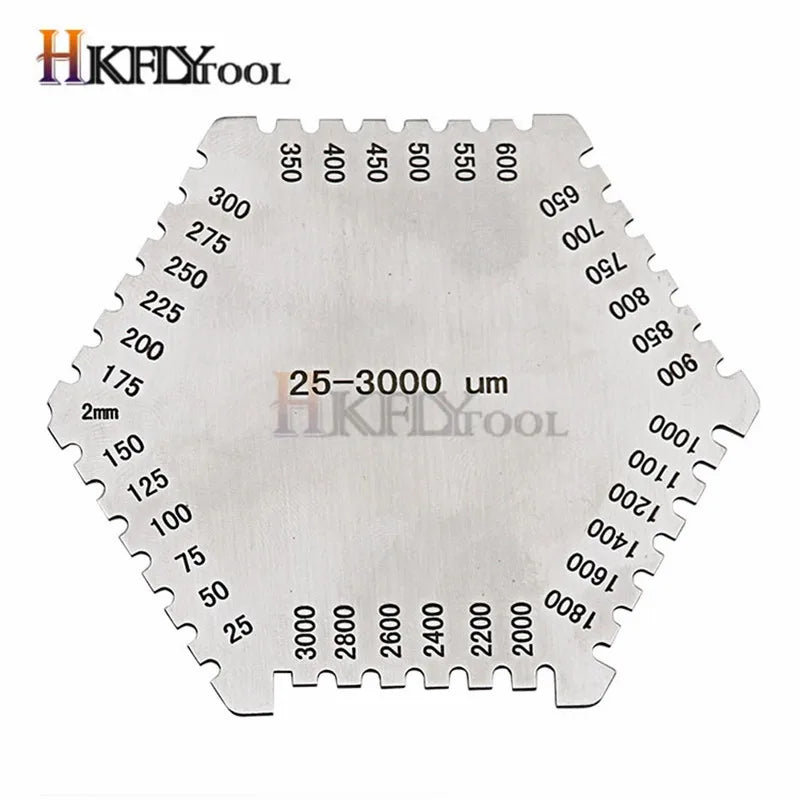

Stainless Steel Wet Film Comb Hexagonal Gauge 25-3000um

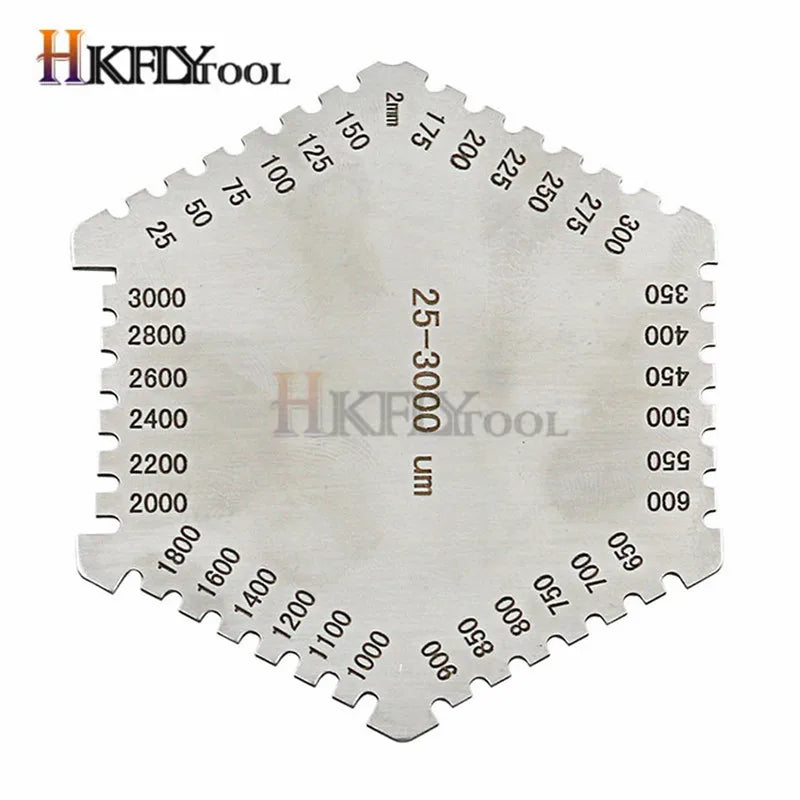

These hexagonal precision formed stainless steel wet film combs are long lasting and reusable and are supplied in a range of thicknesses measuring up to 3000 um (120 mils).

These six sided combs vary in size, giving any 24 or 36 measurement steps, depending on the comb, providing added accuracy.

Using a wet film comb Place a comb perpendicular to and touching the substrate. Hold the comb in position and wait a few seconds until the teeth are wet.

Remove the comb from the film.

Name: Stainless steel hexagonal wet film comb

Measuring range: 25-3000um

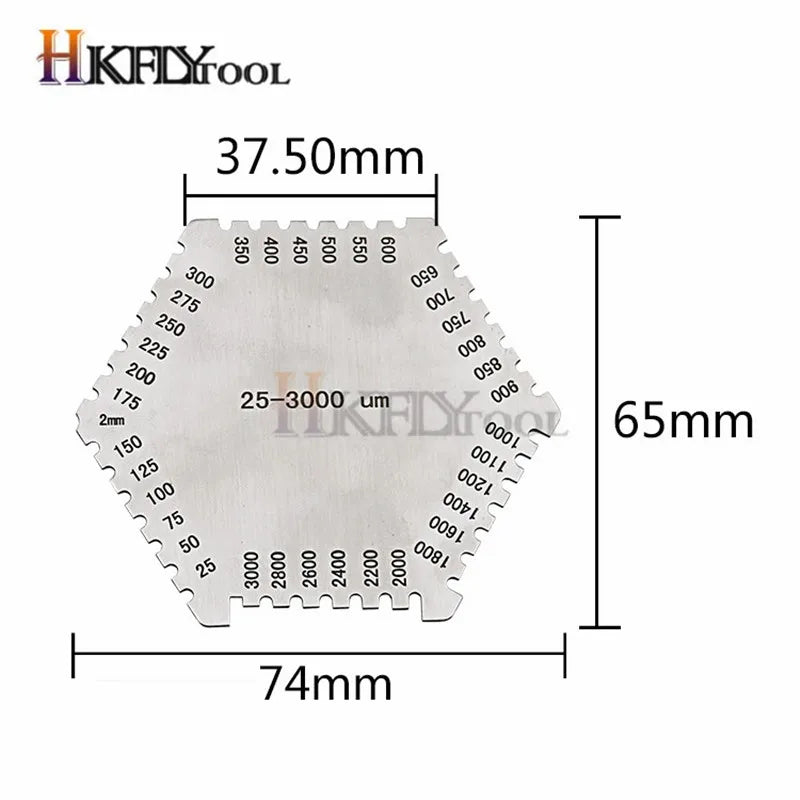

Size: 37*65*0.83mm

Material: Stainless steel

Scale process: laser scale

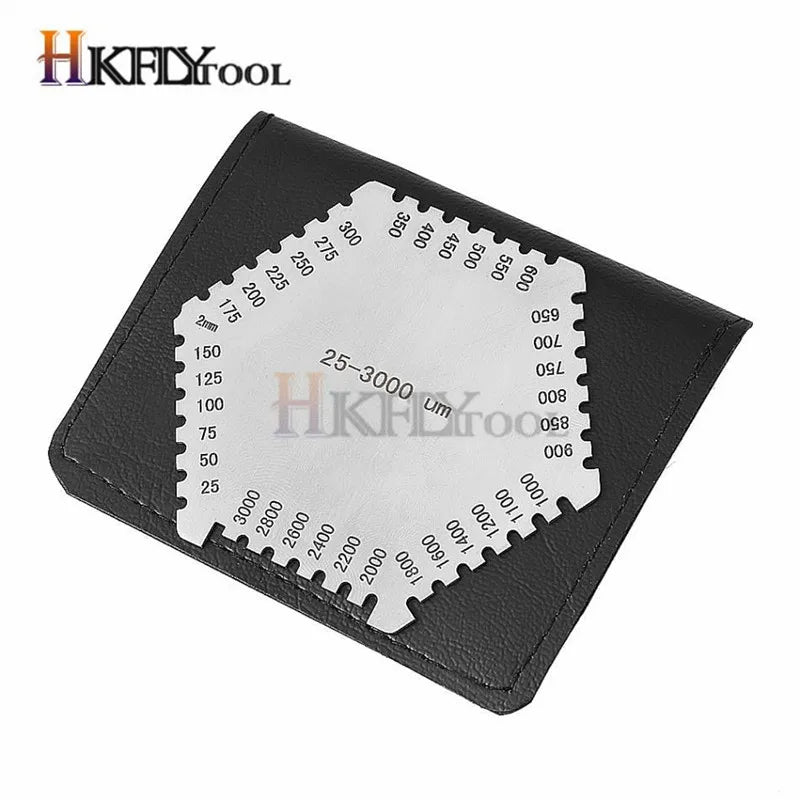

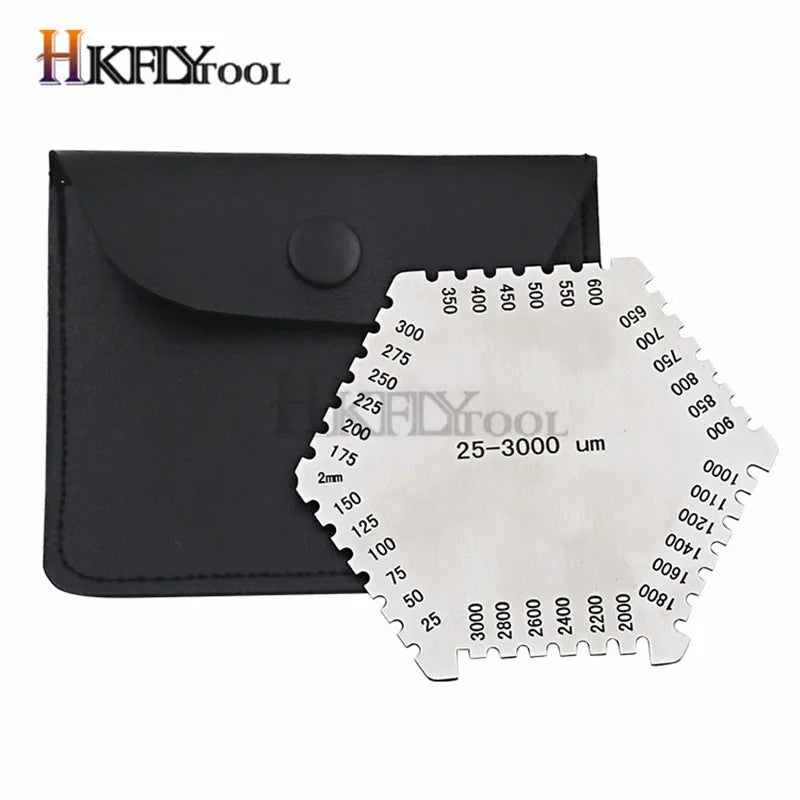

Weight: 31g Packing: leather sleeve

1. Immediately after the various coatings are applied, the wet film thickness gauge is placed vertically on the flat surface of the workpiece coating, and the coating thickness can be measured immediately.

2. After use, the instrument should be wiped clean and placed in a dry place.

3. Calculation methods, such as 2000 micron: maximum scale of wetting 2600 microns: minimum scale not wetted The thickness of the wet film is between 2000 microns and 2600 microns

Package includes: 1 x wet film thickness meter Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
